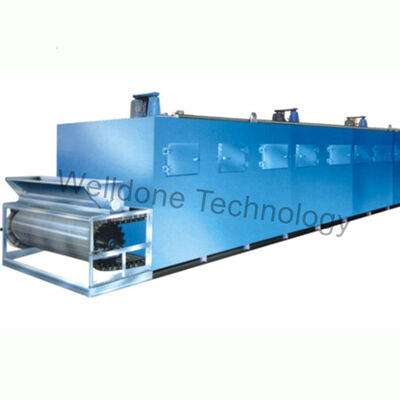

High Efficient Automatic Functioning Long Conveyor Belt Dryer

Ampliación de imagen : High Efficient Automatic Functioning Long Conveyor Belt Dryer

Datos del producto:

Lugar de origen:	China
Nombre de la marca:	WELLDONE
Certificación:	CE, ISO 9001: 2008, ISO 10004
Número de modelo:	PZG- (500-12000)

Pago y Envío Términos:

Cantidad de orden mínima:	1set
Precio:	11000 USD to 200000 USD
Detalles de empaquetado:	Caso de madera + película plástica + marco de acero
Tiempo de entrega:	días 30-60Working
Condiciones de pago:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad de la fuente:	10Sets/Months

Contacto

High Efficient Automatic Functioning Long Conveyor Belt Dryer

descripción

Voltaje:	110V/220V/380V/415V/480V	Hertz:	50Hz, 60Hz
Material:	CS/SUS304/SUS316L/Titanium	Poder de la instalación:	5.5KW-85KW
Temperatura de sequía:	50-150℃	Peso:	0.8Ton-40Ton
Recurso de calefacción:	Vapor/aceite termal/agua caliente	Eficacia de sequía:	el 80%
Manera de controlar:	Botón/pantalla táctil/telecontrol	Diseño especial:	Sequedad de la resistencia de la explosión/de la baja temperatura
Cargamento Capcity:	150KGS/Batch-8000KGS/Batch

Description of High Efficient Automatic Functioning Long Conveyor Belt Dryer

The cost of stainless steel mesh belt drying machine in conveyors, belt dryer machine is much higher, so it is usually selected according to the situation as customers' requirements. If the drying materials are not corrosive and the quality requirements are not high, the carbon steel shall be selected. Of course, the food industry drying materials must choose stainless steel mesh belt drying machine in conveyors, belt dryer machine. So the carbon steel type mesh belt dryer is suitable for coal ,charcoal and other material briquettes. While the stainless steel (like SUS 304, SUS316, etc.) type mesh belt dryer is suitable for food, like fruits, vegetable, sea food and some other food industry drying materials.

Principle of High Efficient Automatic Functioning Long Conveyor Belt Dryer

The material is evenly spread on the mesh belt by the feeder, and the mesh belt adopts 12-60 mesh stainless steel screen. Move in the dryer by the drive. The drying machine is composed of several units, and each unit has its own hot air circulation. Part of the exhaust gas is discharged by a special dehumidifying fan. The exhaust gas is controlled by the regulating valve. The mesh belt moves slowly, and the operation speed can be adjusted freely according to the material temperature. The upper and lower circulation units can be flexibly equipped according to the user's needs, and the number of units can be selected according to the needs.

Advantages of High Efficient Automatic Functioning Long Conveyor Belt Dryer

It is suitable for the drying of flake, strip and granule materials with good air permeability. The series dryer has the advantages of fast drying speed, high evaporation intensity and good product quality. The paste material of dehydrated filter cake can be dried by granulation or bar.

High Efficient Automatic Functioning Long Conveyor Belt Dryer 2

Technical Parameters of High Efficient Automatic Functioning Long Conveyor Belt Dryer

High Efficient Automatic Functioning Long Conveyor Belt Dryer 3

High Efficient Automatic Functioning Long Conveyor Belt Dryer 4

Picture of High Efficient Automatic Functioning Long Conveyor Belt Dryer in Working

High Efficient Automatic Functioning Long Conveyor Belt Dryer 5

After Sell Service

High Efficient Automatic Functioning Long Conveyor Belt Dryer 6

Service before sell:

----Provide relative technical data for help equipment selection

----Running pilot test

----Offering advice for equipment selection, material analysis

----Provide flow chart, basic drawing

----Provide technical design

Service in sell:

----Provide factory layout according to contract

----Manufacturing ordered equipment according to the related standard

---- A presentation report of manufacturing situation will be offered every 15days

---- Tracking and supervising in whole manufacturing and transporting period according to the contract requirement

---- Photo of wooden case will be offered, wooden case with standard shipping marks.

---- Photo of freight loading will be offered.

---- A record of detailed delivery list will be offered

---- A record of detailed freight loading list will be offered

---- All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing

Service after sell:

----Send service engineer for help instruct installation.

----Send service engineer for running test at site and training the operator

----Help client for maintenance and repair

----Provide one year spare part

----Quality warranty for two years after sell
