DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design)

Certificación
Porcelana Changzhou Welldone Machinery Technology Co.,Ltd certificaciones
Porcelana Changzhou Welldone Machinery Technology Co.,Ltd certificaciones
Comentarios de cliente
¡Los trabajos buenos, WELLDONE del secador y del granulador!!

—— YUN ha de Byung

Se califican todo el secador de espray, secador de bandeja, el secador cónico del vacío y el mezclador de tornillo doble, yo son felices con ellos, buscarán algunos otros equipos de usted pronto

—— Manoel

La calidad y el servicio son grandes, usted son un amigo confiable. :)

—— George Clemente

Estoy en línea para chatear ahora

DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design)

DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design)
DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design)

Ampliación de imagen :  DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design)

Datos del producto:
Lugar de origen: China
Nombre de la marca: WELLDONE
Certificación: CE/ISO9901:2008/ISO10004
Número de modelo: DWF
Pago y Envío Términos:
Cantidad de orden mínima: 1set
Precio: 8000USD/Set-350000USD/Set
Detalles de empaquetado: Paquete de madera del caso + película plástica
Tiempo de entrega: 30-60 días laborables
Condiciones de pago: Carta de crédito, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad de la fuente: 10sets/mes

DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design)

descripción
tensión: 110V/220V/380V/415V/480V Hertz: 50HZ/60HZ
Poder de la instalación: 7.5KW-125KW Materiales: CS/SUS304/SUS316L
Recurso de calefacción: Vapor/eléctrico/gas/diesel Peso: 500KGS-40000KGS
Temperatura de sequía: 50-250℃ Eficacia de sequía: 75 %
Manera de controlar: Botón/pantalla táctil/telecontrol Diseño especial: Producto adhesivo de la pared/sequedad de la baja temperatura
Resaltar:

fruit dryer machine

,

cabinet tray dryer

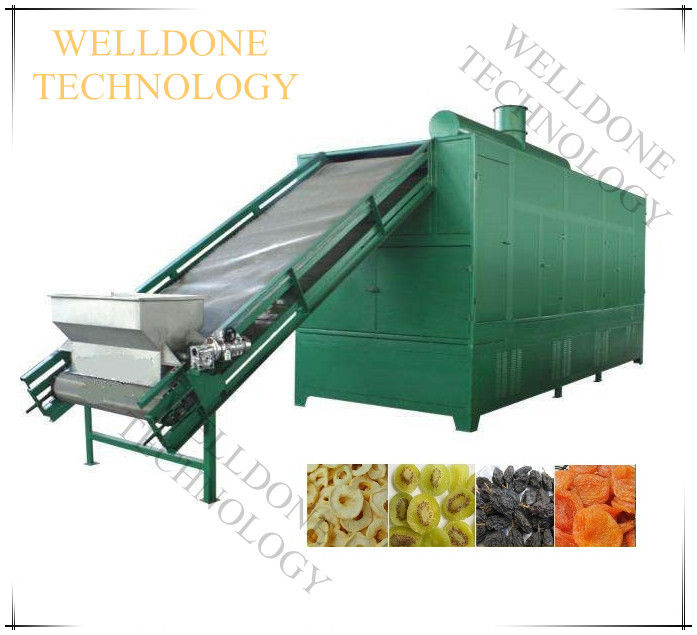

Description of Candied Fruit / Preserved Fruit / Confect Belt Dryer

Raw materials are uniformly fed on the mesh-belt / plate belt by distributor. The mesh-belt / plate belt is drawn and moved inside the dryer by a driving device. The dryer is consisted of several independent drying sections. Hot air circulated separately and independently in each section. Part of damp air will be exhausted by exhausting fan. Hot air penetrates the belt from top to bottom or from bottom to top, and this will complete the heat and mass transfer process. Moving speed of belt is adjustable. The top and bottom circulation units can be freely equipped according to customer's requirement.

DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 0





Features of Candied Fruit / Preserved Fruit / Confect Belt Dryer

◆◆ Different heating and circulation method is available for choice.

◆◆ Length , width and layer quantity of belt is designed based on production requirement.

◆◆ The machine pre-dehydration process could remove massive moisture on leaf surface, thus reduced the drying strength, and reduced the energy consumption.

◆◆ Special hot air drying system, increase material penetrability and drying rate.

◆◆ The adjustment of belt speed and the different section temperature control, it guaranteed the drying time and material quality and color.

◆◆ Strong magnetism iron removal device is available for choice, it could remove metal impurities effectively.





Application of Candied Fruit / Preserved Fruit / Confect Belt Dryer

◆DWF belt dryer is continuous-production drying equipment. The dryer being widely used for drying the piece, strip and particle shape materials in good ventilation. The dryer is suitable for de-watering fruit & vegetable which the moisture content is high and high drying temperature is not allowed. Drying speed of belt dryer is fast, evaporation strength is high and the product quality is good.
◆DWF belt dryer is widely used and support for drying various kind of material such as pigment, fiber, fruit & vegetable, briquette etc.





Technical Parameters of Candied Fruit / Preserved Fruit / Confect Belt Dryer

DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 1



Picture of Belt Dryer in Working

DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 2DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 3DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 4DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 5

DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 6DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 7
